Single ROVTools

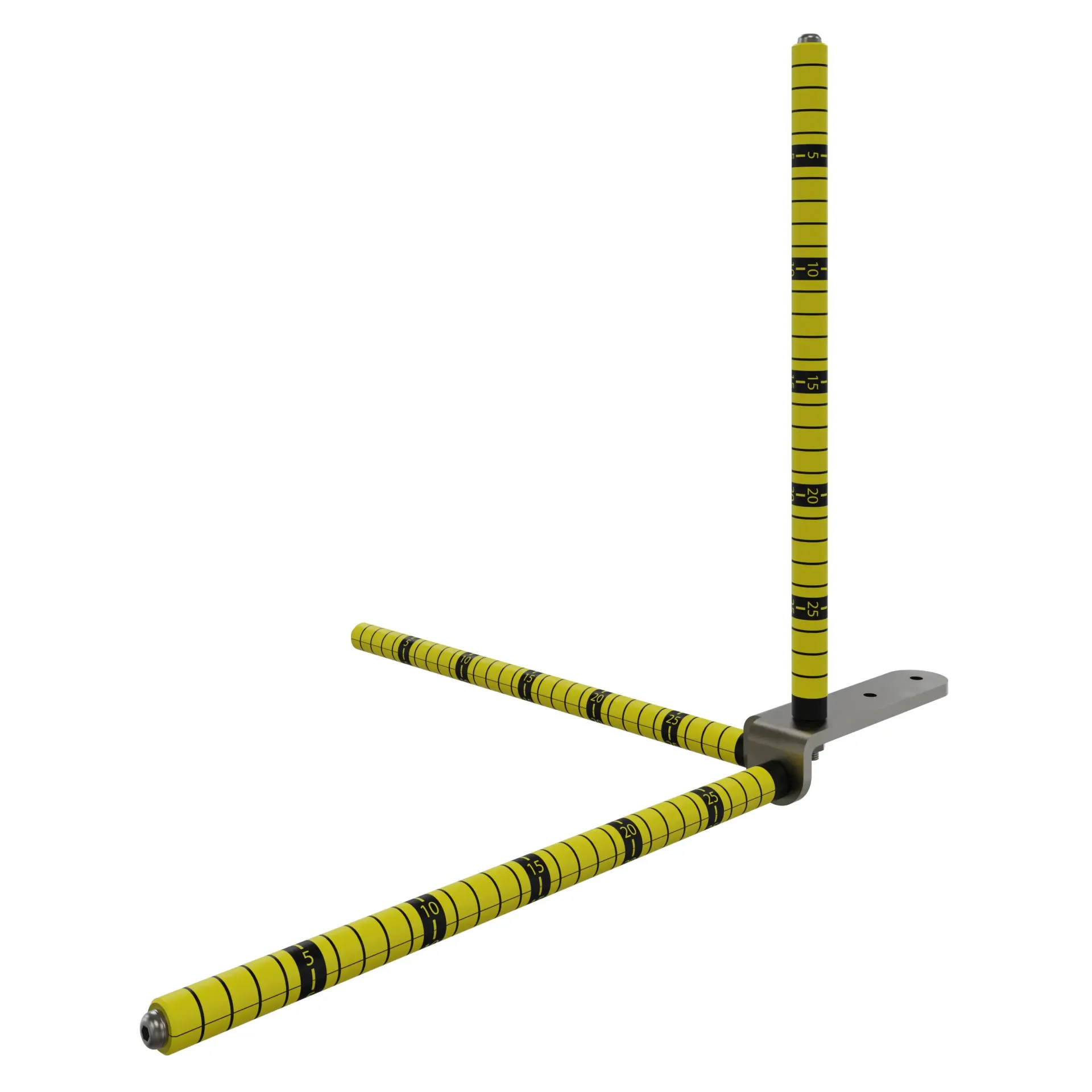

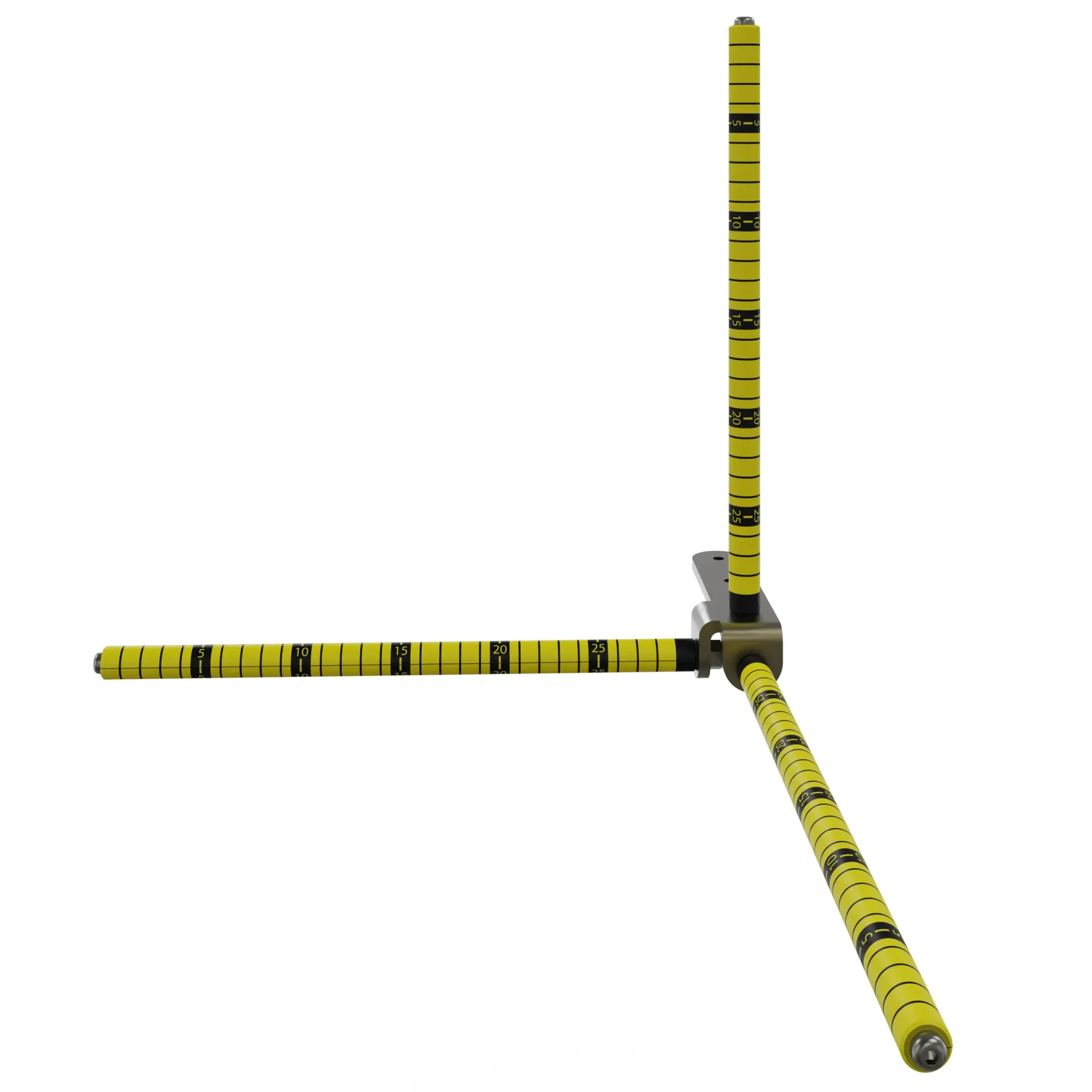

Measure Growth Tool
A simple 3 Axis measurement tool to aid marine growth estimations.
Dimensions:
Gauge Length - 300mm (12")
Gauge Graduations - 10mm (0.4")
Tool Length - 515mm (20.3")

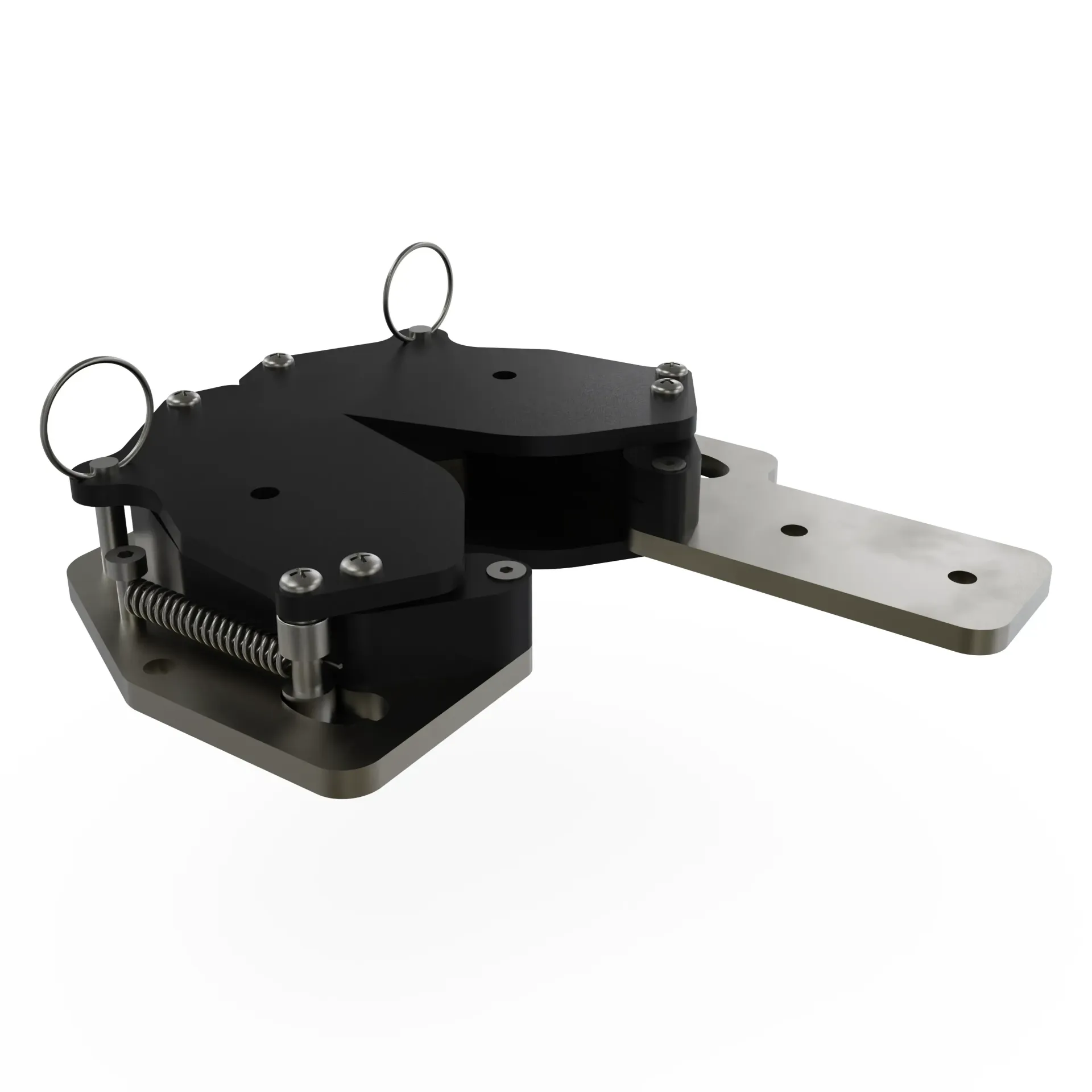

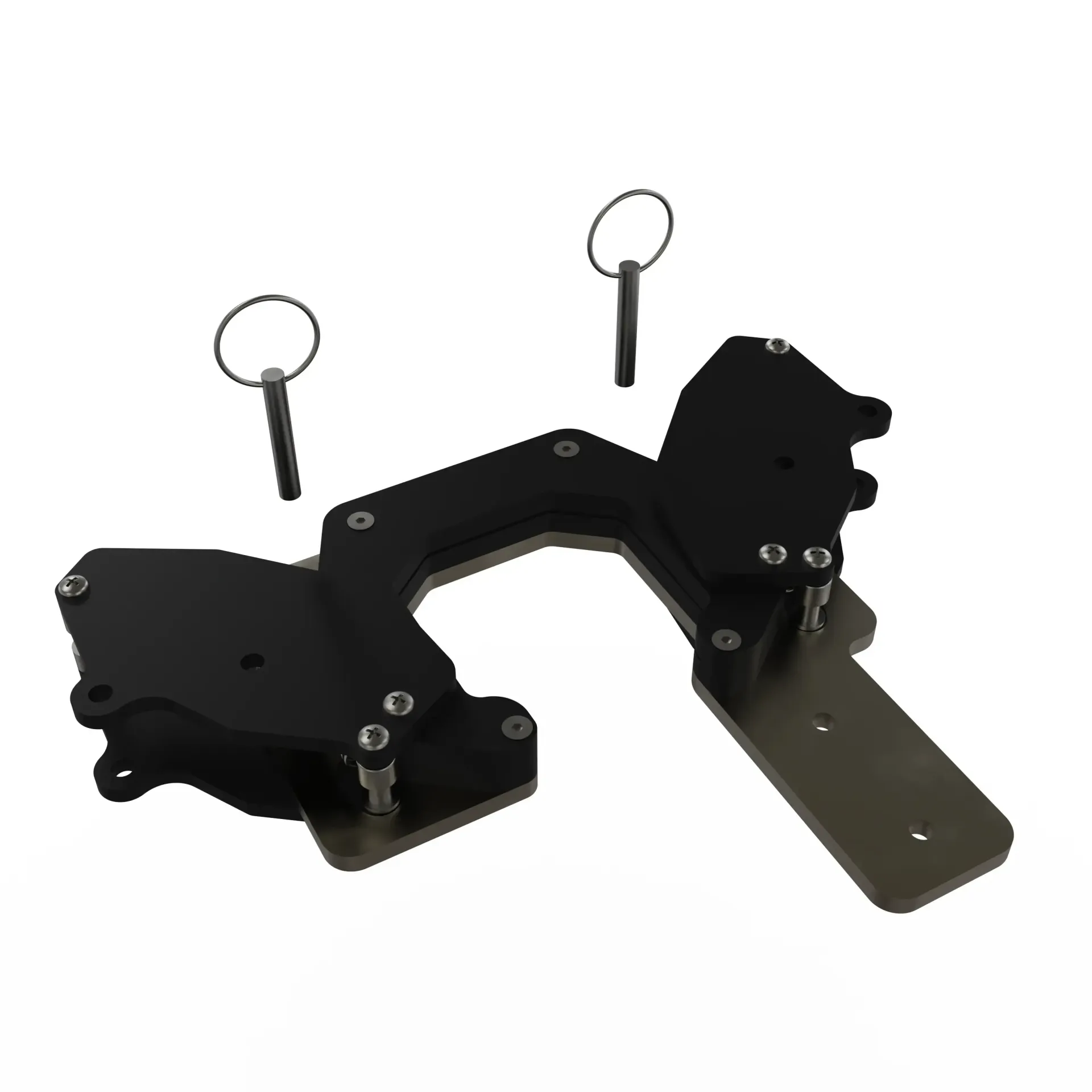

Blade Cutter
A five blade cutter designed to effectively cut polyprop rope subsea.
Blades are supplied but not fitted for transit. Safety pins fitted and to be removed predive.
Dimensions:
Throat Width - 50mm (2")
Total Blade Length - 160mm (6.4")
Marine Growth Remover
This marine growth remover tool is designed to be pressed up against risers and conductors. With movement of ROV up or down this will shave off soft marine growth.
Dimensions:
Cleaning Span - 830mm (33")
Tool Length and Width - 880mm x 425mm

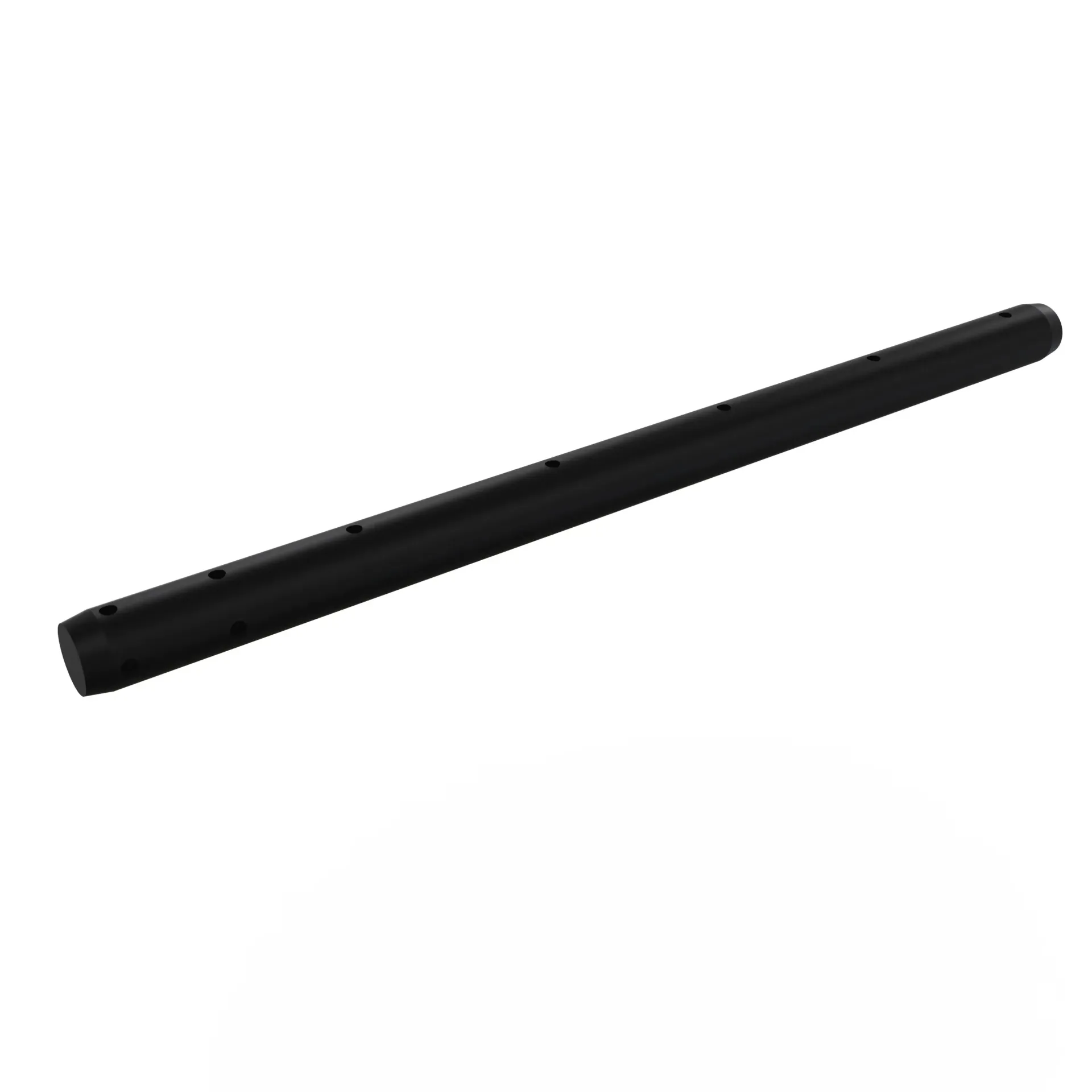

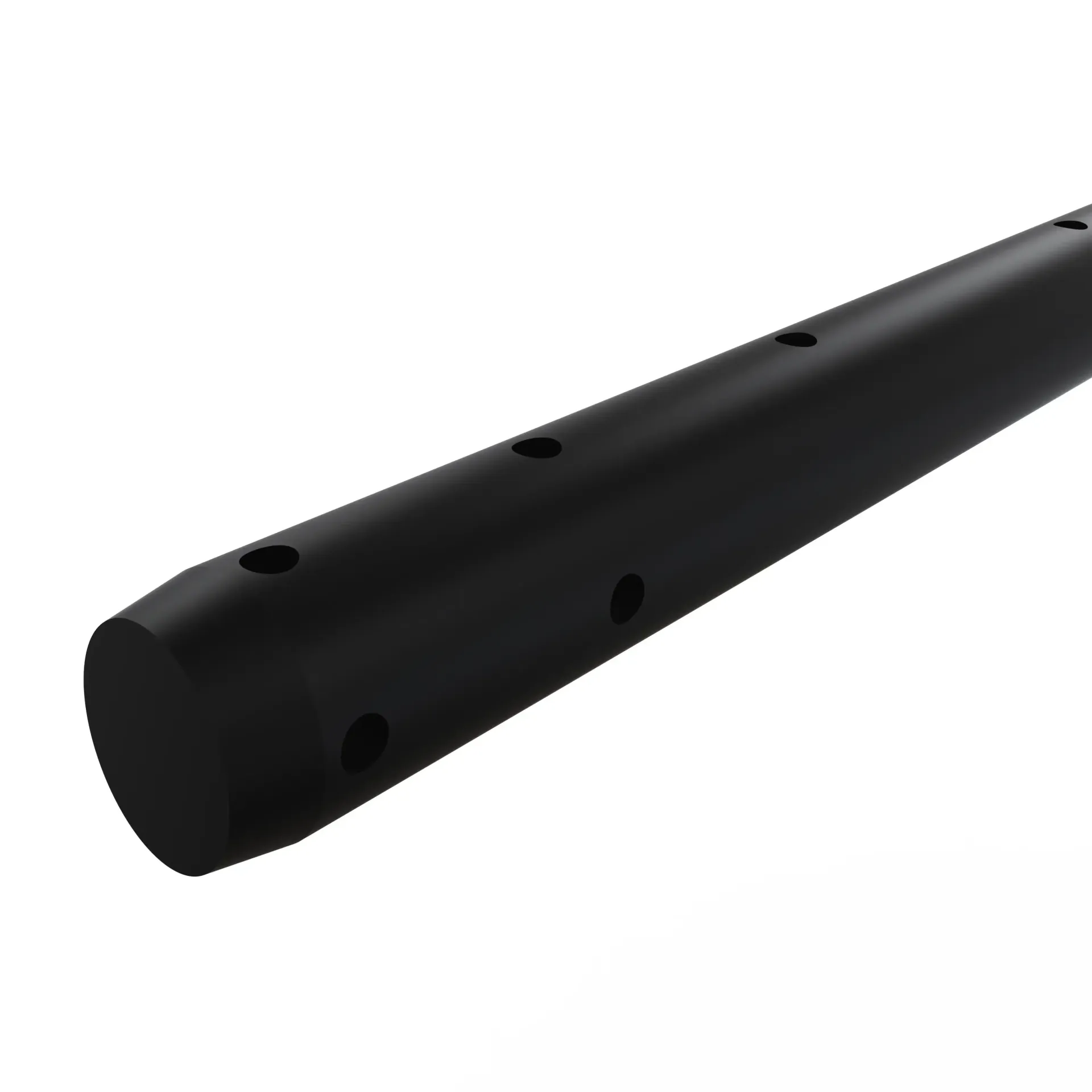

Adjustable Pole
This adjustable pole is designed for use with all of tools in the RovTools kit.
Dimensions:
Length - 500mm (19.7")
Diameter - 30mm (1.2")
Steps in Length - 4 Positions

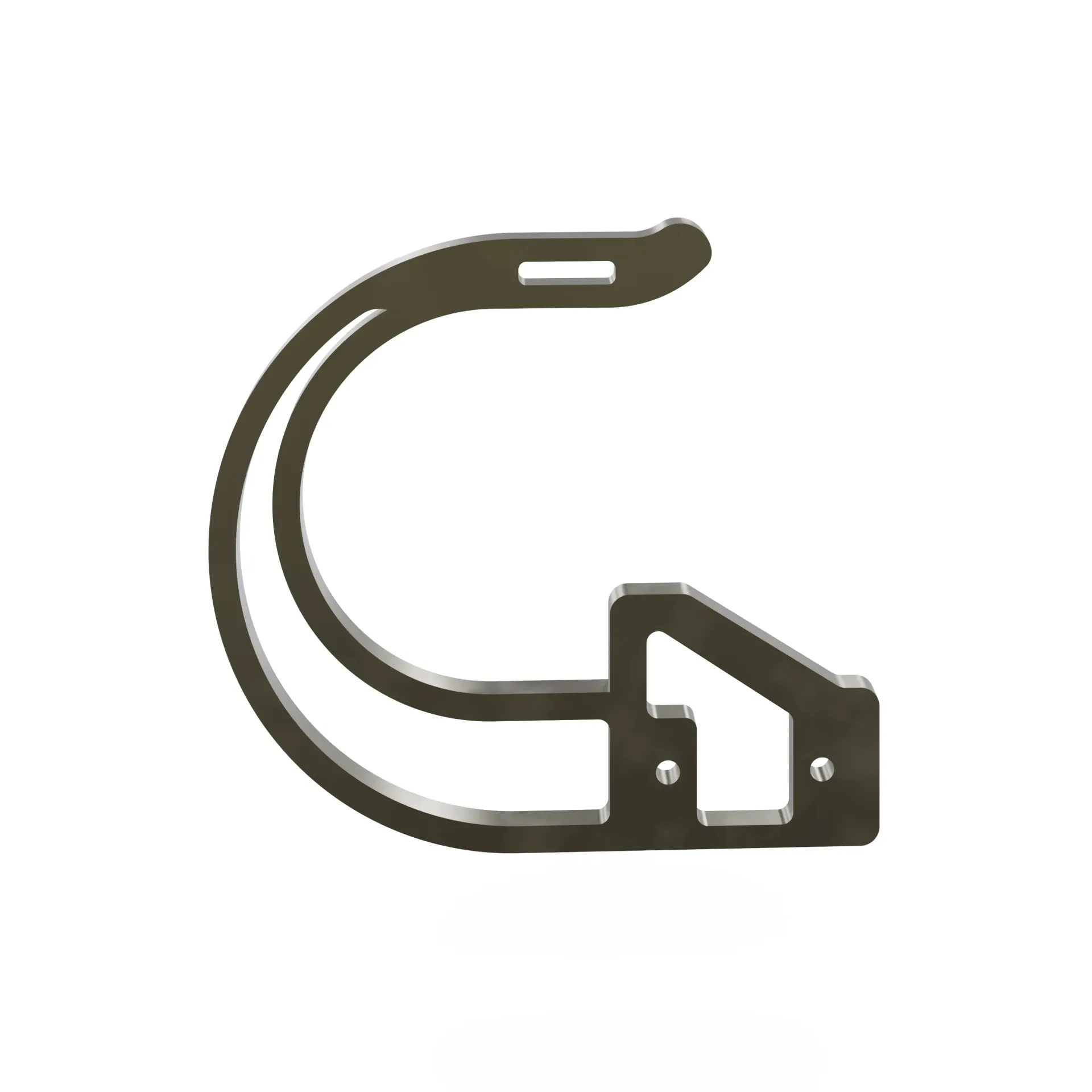

Crook
The Crook gives the ROV operator a versatile lifting and positioning tool, while the ramped barb ensure that ropes and cables are captured easily and retained.
Dimensions:
Throat Size - 75mm (3.0")
Thickness - 6mm (0.25")

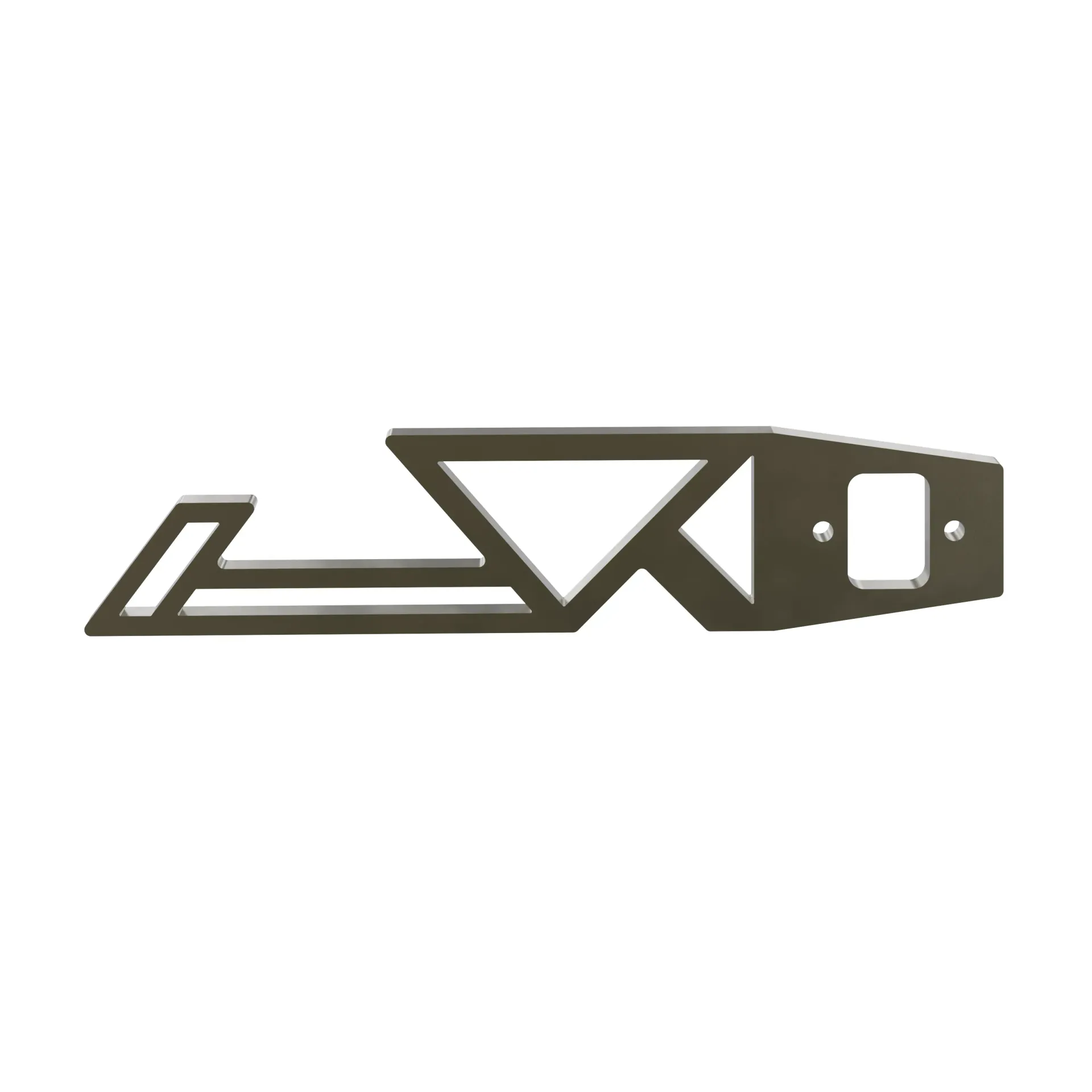

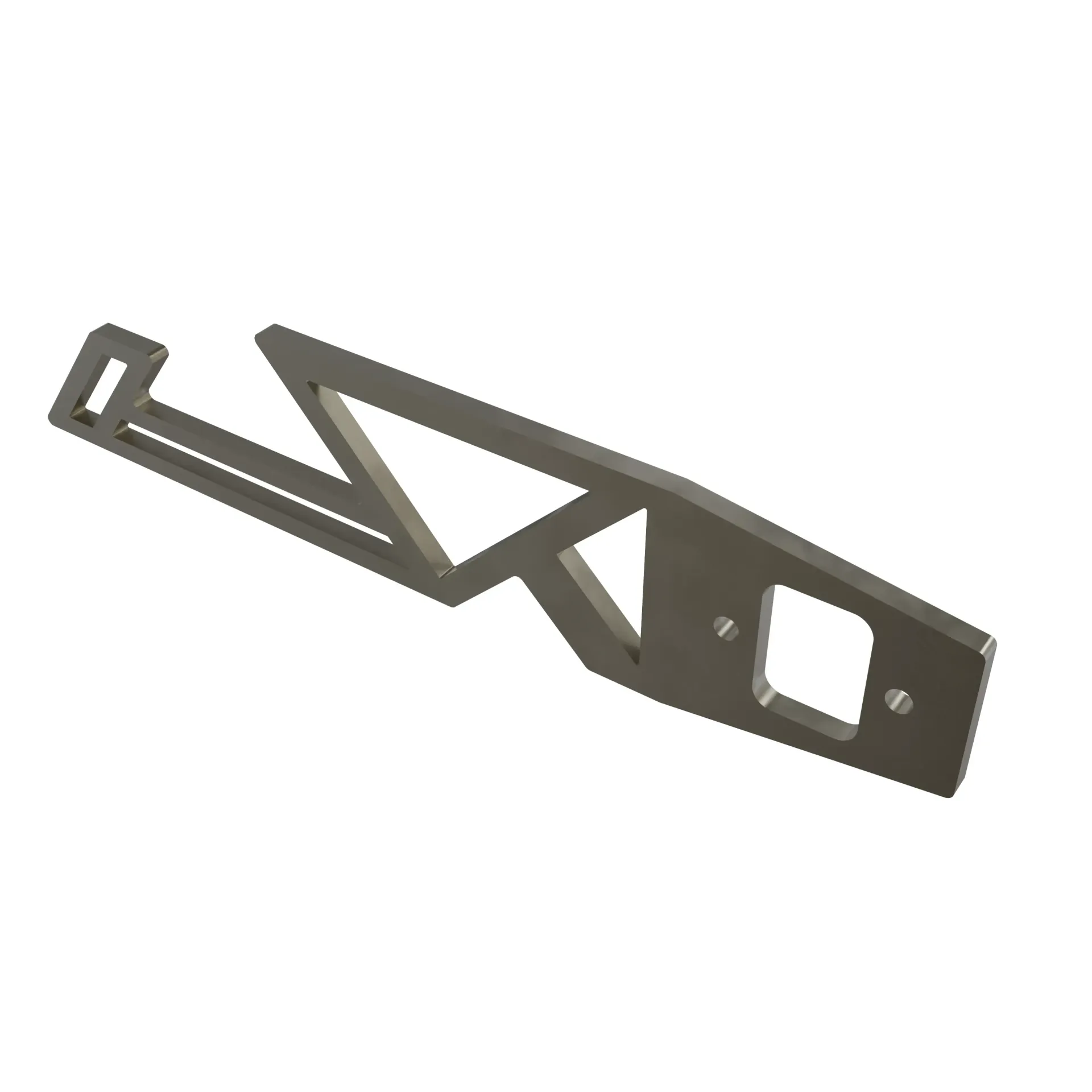

Hook
The forward facing barbed Hook design is ideal for collecting, pushing, pulling or working with finely detailed objects such as netting or ropes.
Dimensions:
Throat Size - 40mm (1.8")
Thickness - 6mm (0.25"), Hook Width - 60mm (2.4"), Hook Length - 200mm (7.9")

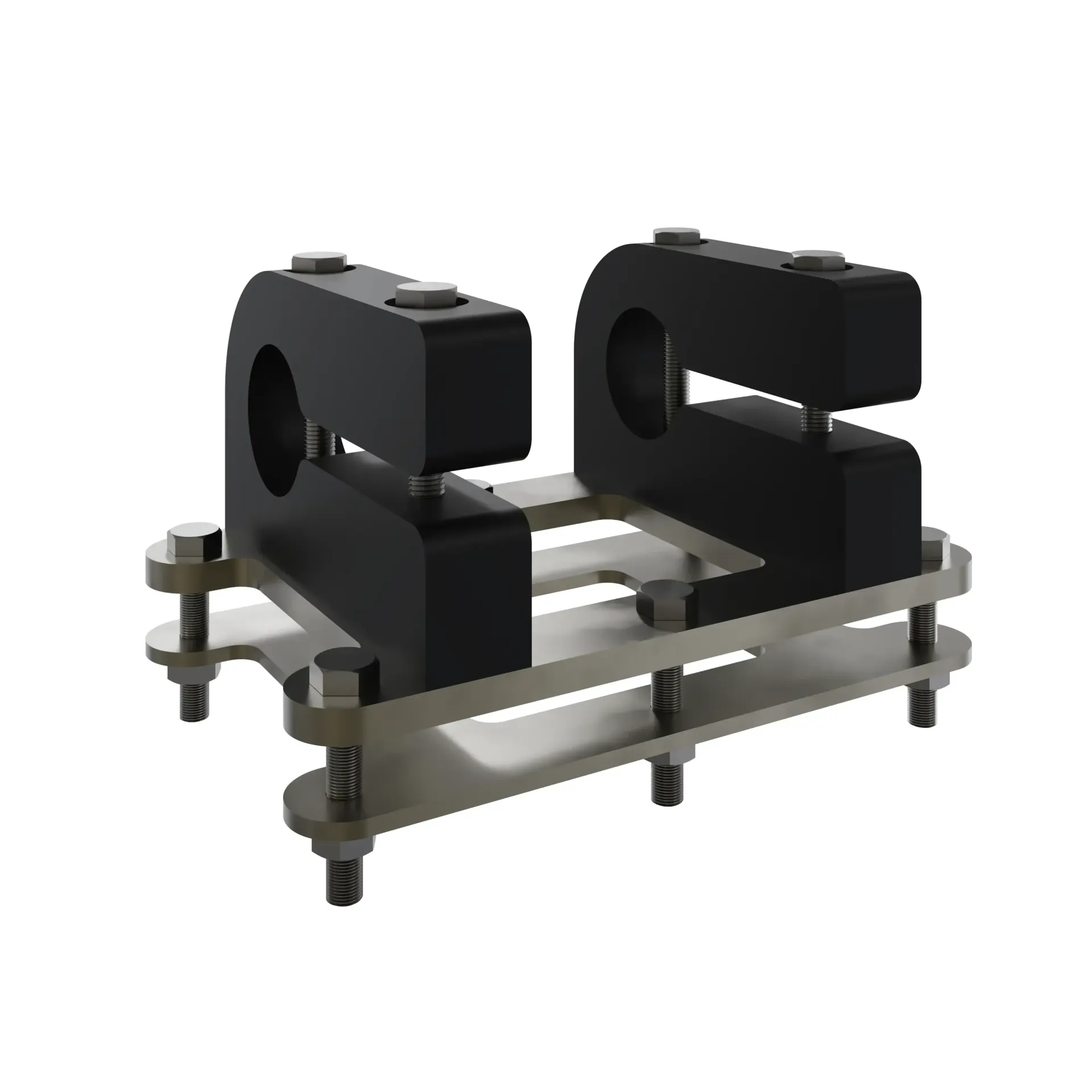

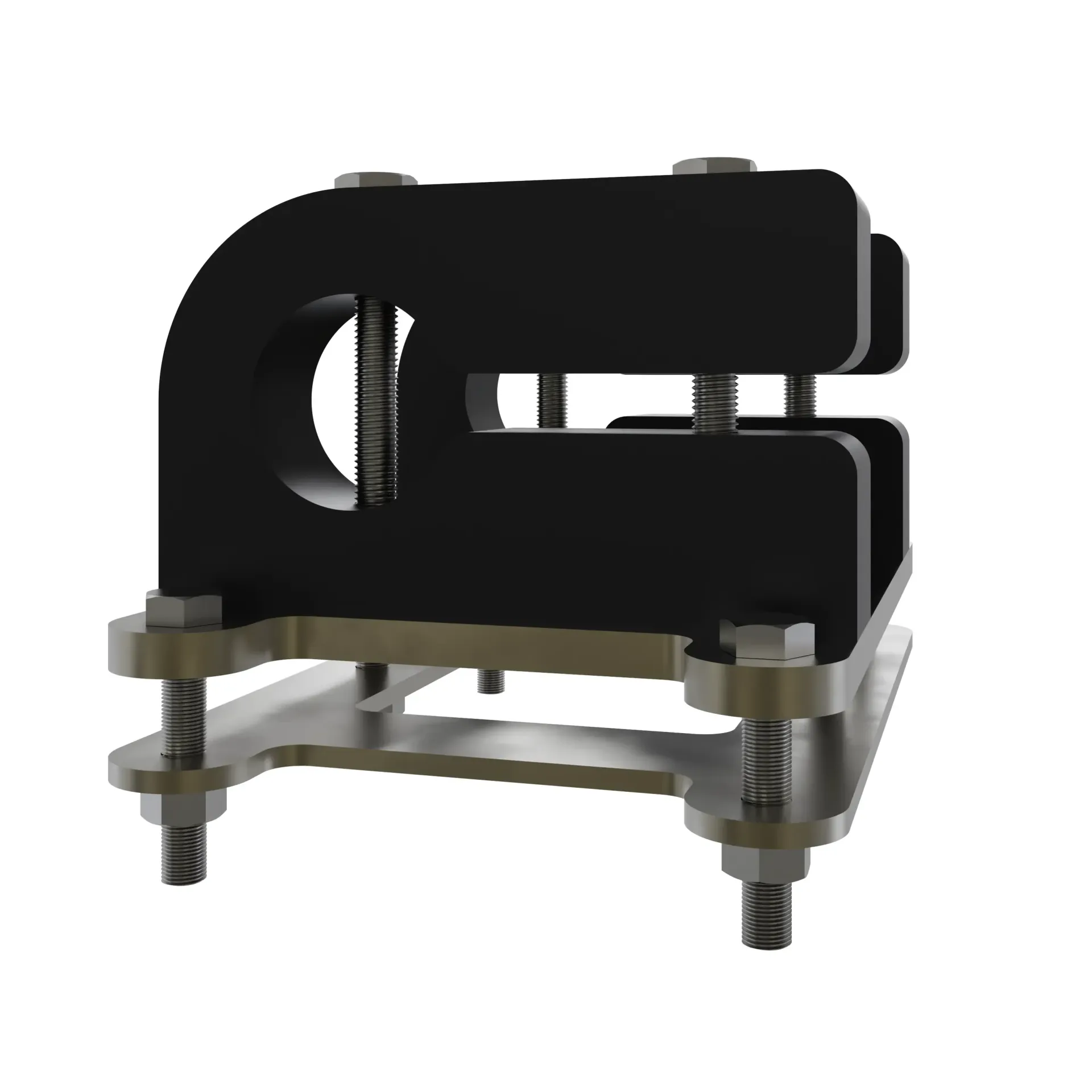

Clamp
Clamp assembly is securely attached to the ROV skid using six heavy duty bolts and a load-spreading back plate.
Dimension:
Length - 150mm (6.0"), Width - 100mm (4.0"),
Height - 80mm (3.2")

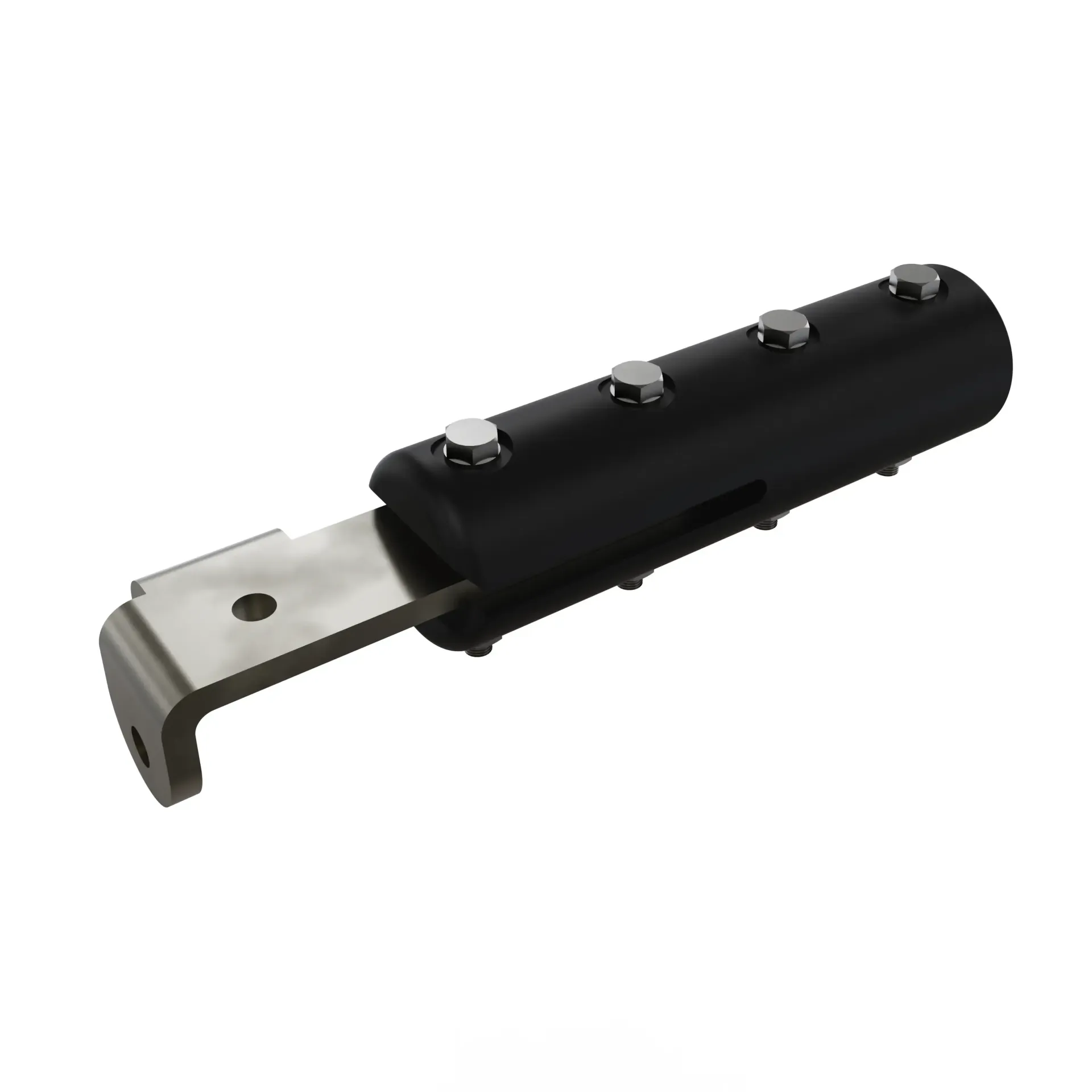

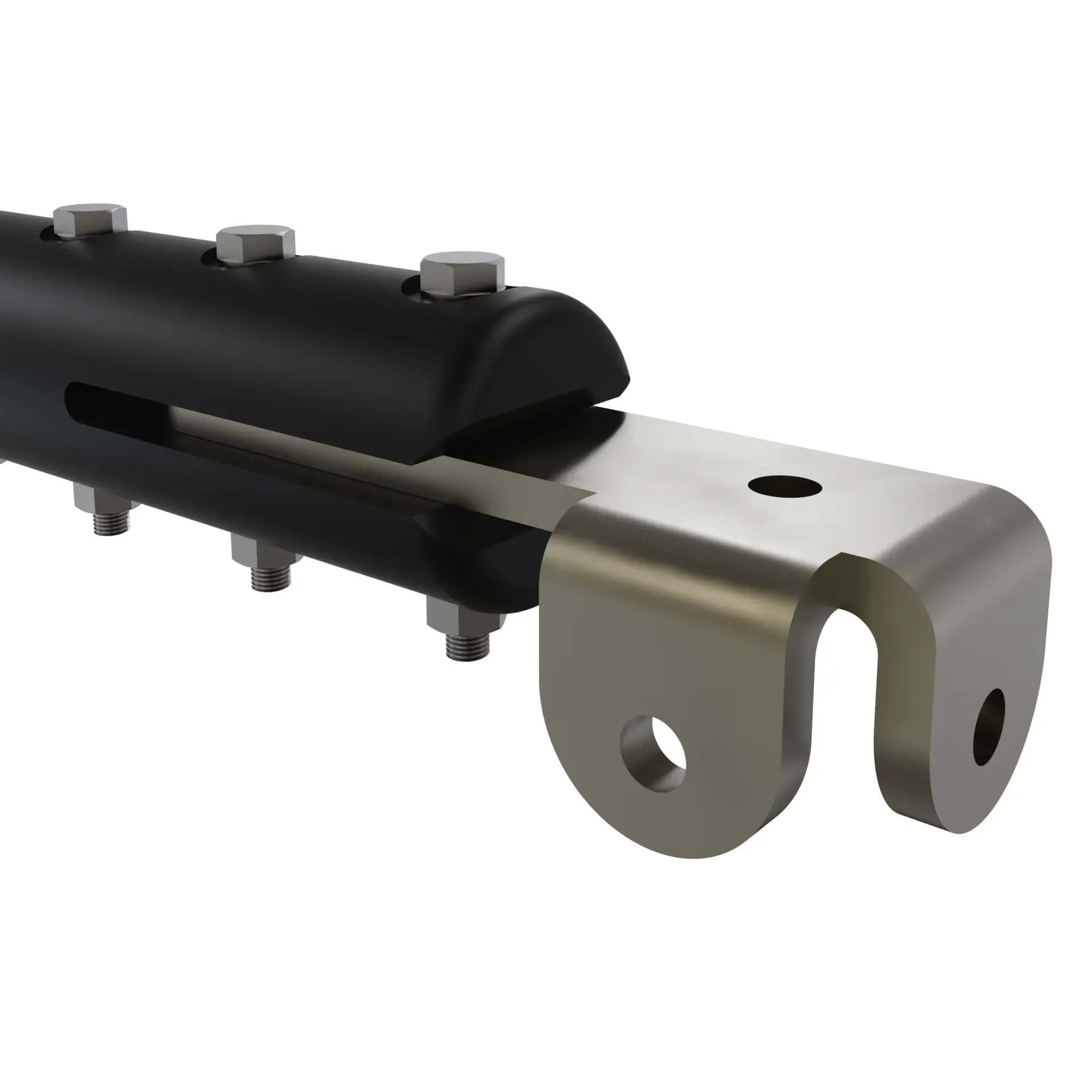

Multi Tool Adapter
The Multi Tool Adapter serves as a base part for the Marine Growth Gauge and the brush tools.
Dimension:
Length - 120mm (8.3")
Width - 52mm (2.0")

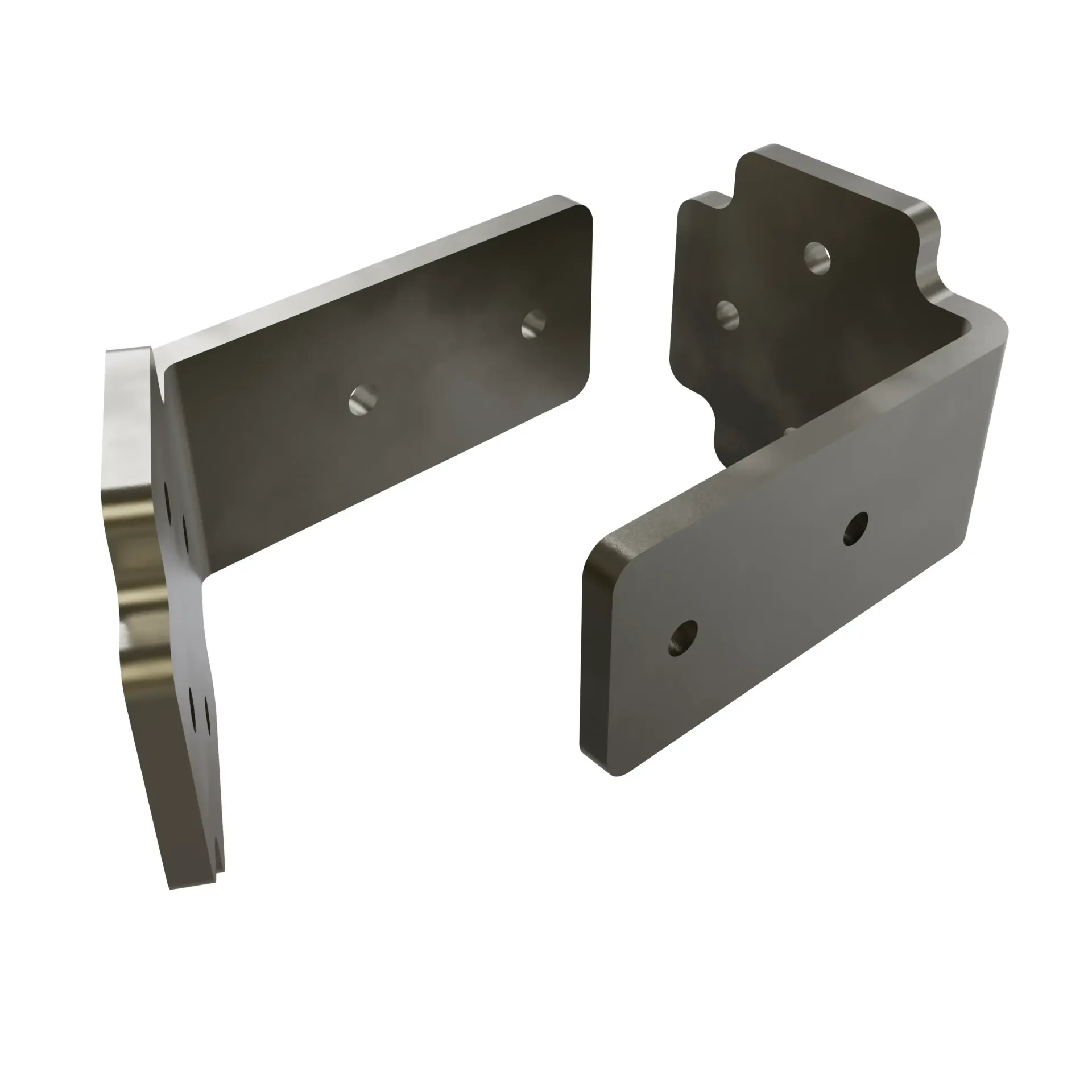

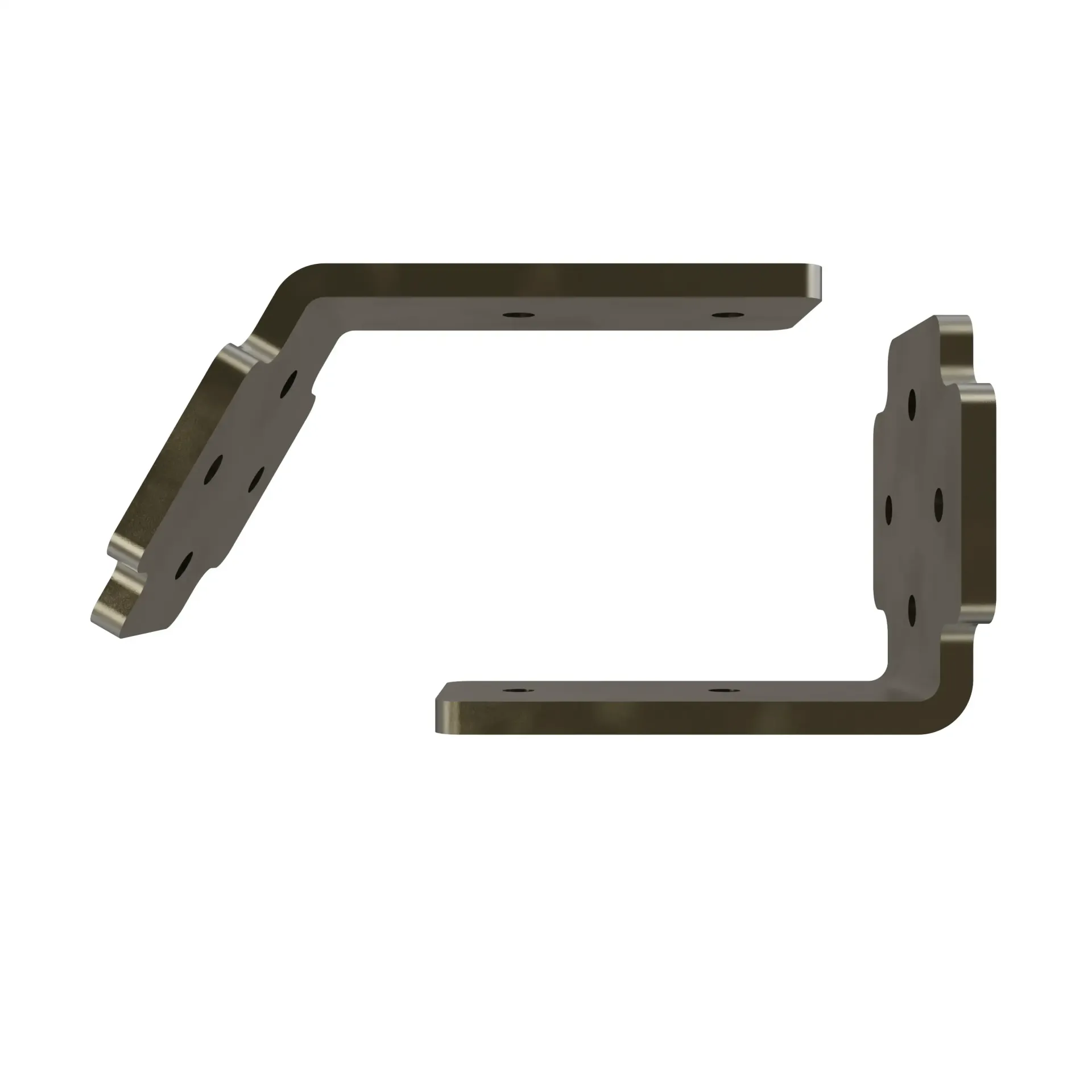

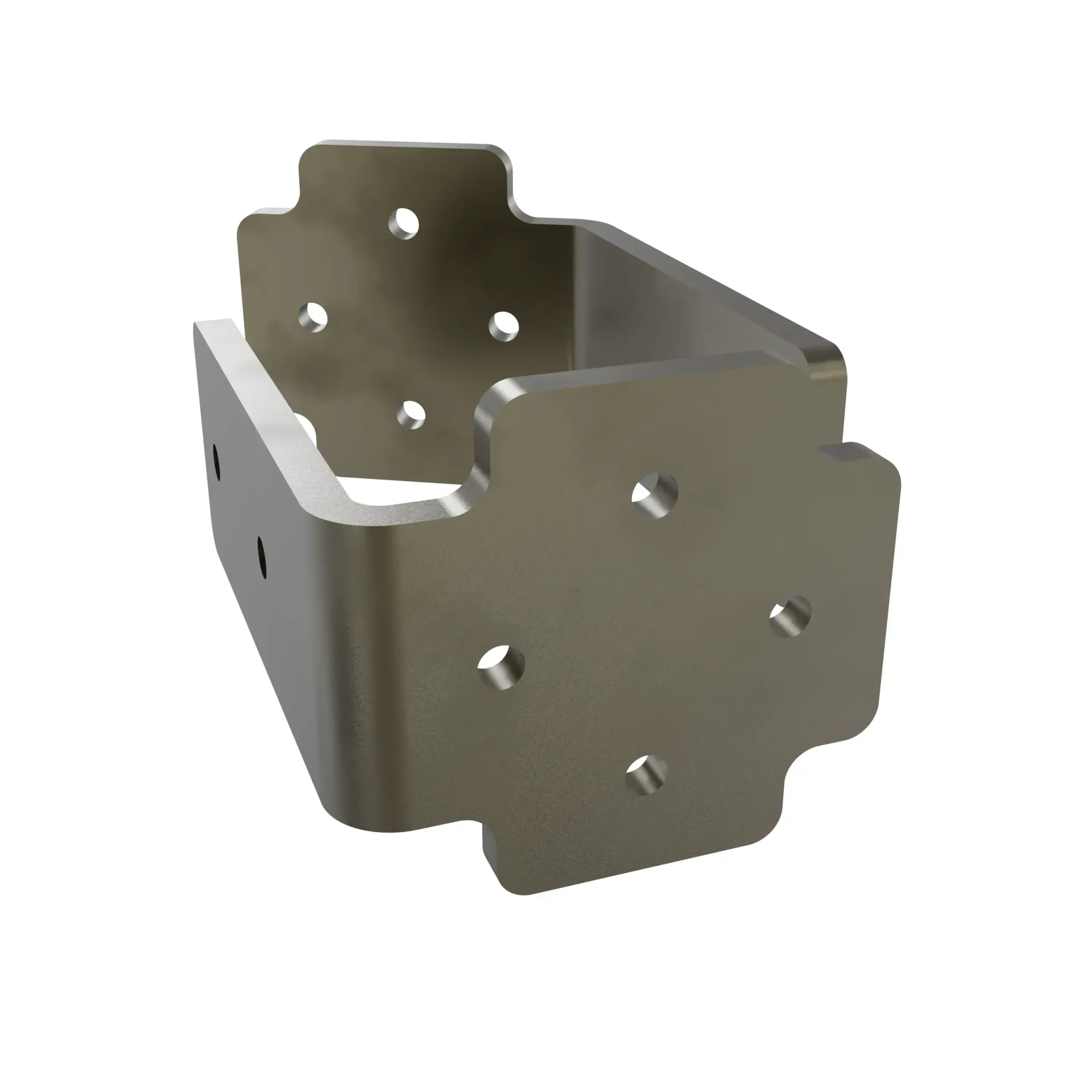

45 & 90 Degree Brackets
The 90° and 45° brackets can be used in combination with most other tools to increase the mounting orientation options on the Tool Pole.
Dimension:
Thickness - 6mm (0.25")
Mounting Orientations - 8 Per Bracket

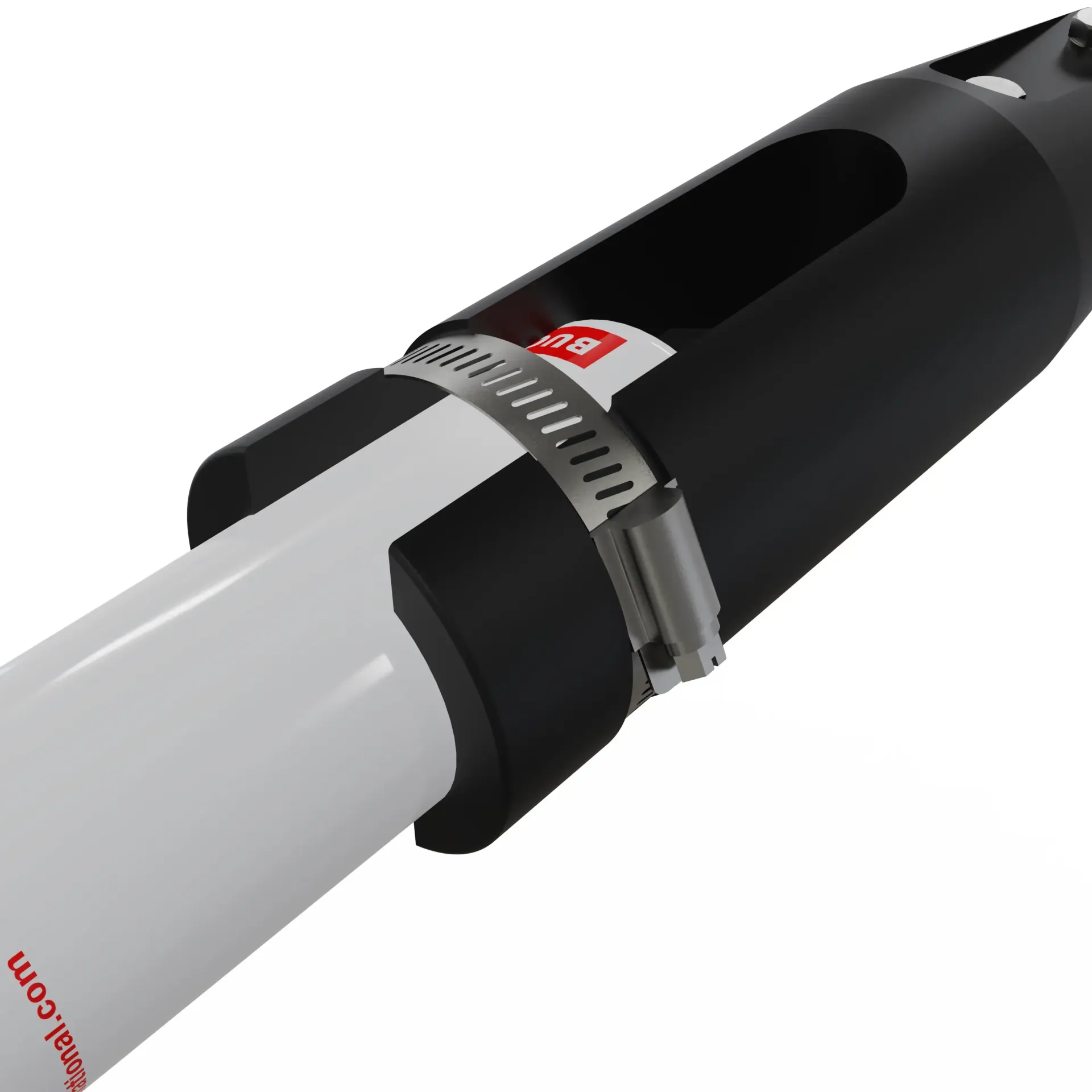

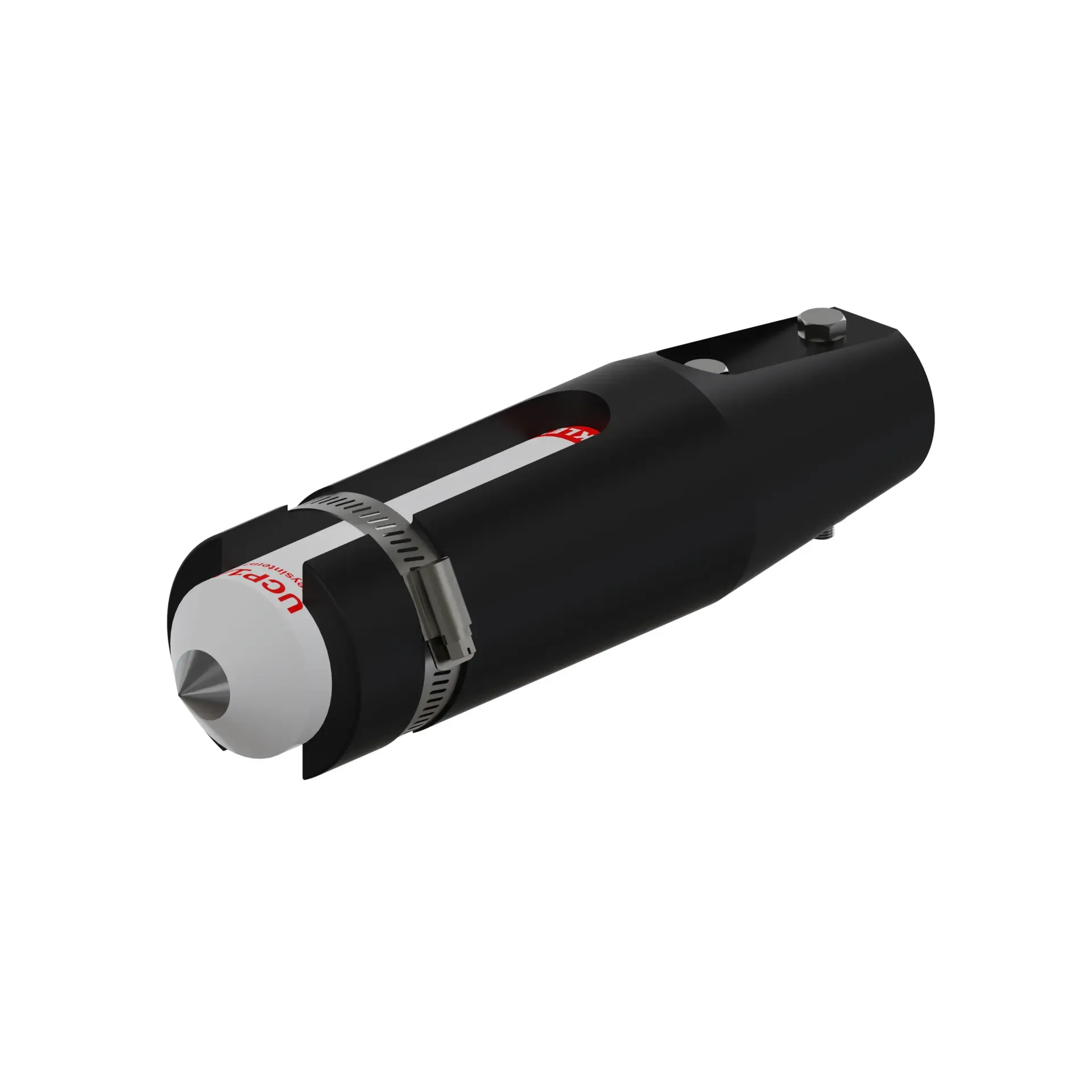

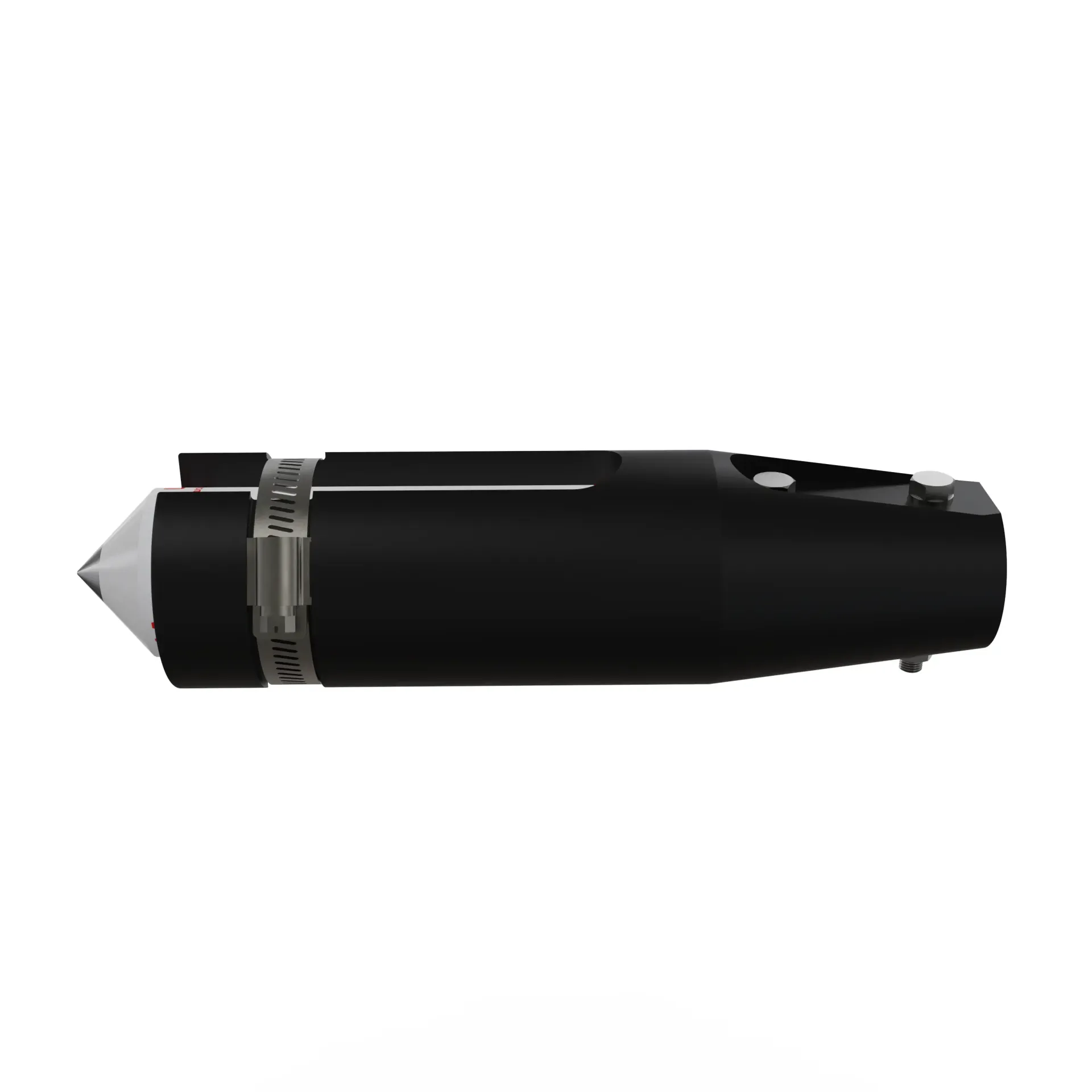

CP Probe Mount
Designed to hold the ‘Buckley’ UCP1A & UCP1B Cathodic Protection probes, this tool allows CP readings to be taken quickly and efficiently.
Dimension:
Bore Diameter - 39mm (1.5")
Bore Depth - 60mm (2.4")
